77/22 LR & 77/22 Magnum Stocks, Receivers and Bolts



Log in to see fewer ads
Since this is asked about repeatedly and has been answered in numerous threads, here it is in a nutshell.
1. Any wooden stock inletted for a 77/22 LR, 77/22 Magnum or 77/17 are interchangeable. The pictures shown below are of the same stock with a 77/17HM2 action and a 77/17HMR action in place. The receivers are the same size, the only difference is the trigger guard lengths.






The only difference between a 77/22 LR bolt and a 77/22 Magnum bolt is the groove length that is machined in the bottom.

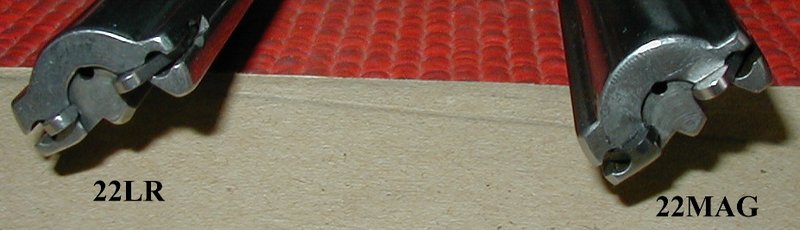

There is No Difference in the cartridge guide, Nor in the bolt face.

I measured the recess depth and the distance across the recess on both of these bolts and they are identical. If your going to build a switch barrel rifle, you will need either the Magnum or LR trigger guard which you can purchase from Ruger or Brownell's in the finish that is the same as your receiver. It is easier to do if you start with a LR model. If using the Magnum model, you have to file down the ejector on the trigger guard to get the bolt to close.
If you have a instruction manual, it lists the appropiate part numbers, if not here they are.
Magnum Trigger Guard, Blued J30201 SS KJ30201T
Magazine Well Liner, Blued J00600 SS KJ00600T
Front Mount Screw Blued J04700 SS KJ04700T
Rear Mount Screw Blued J04800 SS KJ04800T
Magazine JMX-1
You can use a Ruger barrel or one from Green Mountain, Volquartsen, or any number of suppliers.

Last edited by Ole' Man River; 07-28-2007 at 10:23 PM.
Reply With Quote
  #2
Old 06-05-2006, 03:09 PM
SHAWN WALSH
NRA Member - Click Here To Join!

Join Date:
Oct 2003
Location:
Parker Colo.
Posts:
39
TPC Rating:
100% (3)
Not 100% true for all stocks

I have a factory 77/22lr. walnut stock that I was trying to set up as a switch barrel rifle and the magnum rear floor plate I purchased for the conversion would not drop into the stock and allow clearance for the action. I would of had to do quite a bit of inletting to the stock to get the new metal to fit.

I choose not to do so because I am quite happy with .22lr set up and did not want to chance hurting the way it shots.

This may be just a 1/1,000,000 type thing but it didn't work for my set-up.

Cheers!

Shawn
Reply With Quote
  #3
Old 10-20-2006, 01:25 PM
oddbob's Avatar
oddbob

Join Date:
Dec 2004
Location:
Darlington, North-East England, UK
Posts:
163
TPC Rating:
0% (0)
I wondered if anyone could tell me how similar the 1022 action is to a 77/22 in terms of dimensions. I have a nice laminate stock for a 1022 and I'm thinking of getting a 77/22, just wondered if it was worth keeping to fit to the new 77. I don't mind doing a bit of woodwork if it's not a million miles away.
Reply With Quote
Sponsored Links
Advertisement

  #4
Old 12-22-2006, 04:32 PM
CCREELY

Join Date:
Dec 2006
Posts:
27
TPC Rating:
0% (0)
Anyone Know If Houge Makes A Stock For The 77/17 Hmr?
Reply With Quote
  #5
Old 01-18-2007, 09:49 AM
medic52's Avatar
medic52
Emergency Medical Technician NRA Member - Click Here To Join! GOA Member

Join Date:
Oct 2006
Location:
Missouri
Posts:
2,106
TPC Rating:
100% (1)
stock

I have a Ruger M77/22 fatory Stainless I am looking for a Laminated stock, checked w/ Boyd's any they are out of stock, anyone know another place to look. I want one to finish myself in pepper
Reply With Quote
  #6
Old 02-03-2007, 01:43 PM
Canadabob123's Avatar
Canadabob123

Join Date:
Nov 2006
Location:
Heart of the hills
Posts:
178
TPC Rating:
0% (0)
77/22 all weather

I'm interested in getting a wooden stock to replace the plastic paddle. My rifle shoots very well so I intend to keep the stock barrel.

What will I need to buy to convert to wood. I know a trigger guard at least, but does anyone have a list for reference?

Thanks for any info.
Reply With Quote
  #7
Old 02-05-2007, 10:23 PM
Canadabob123's Avatar
Canadabob123

Join Date:
Nov 2006
Location:
Heart of the hills
Posts:
178
TPC Rating:
0% (0)
Stainless All-weather project update

I priced out the cost of parts and a decent wood stock to convert the all-weather. I decided to just upgrade the trigger sear, and I plan to put the $250+ I save into getting a new CZ452 American.

With the time I'll save not spent dressing it up with checkering and putting it together, I'll use to go shooting.

I bought the all-weather as a take anywhere gun since I live in a rain forest climate. My daughter uses the all weather when we go to the range, and I shoot my 541S.

It just makes sense to buy a new gun. That's my story and I'm sticking to it.
Reply With Quote
  #8
Old 04-03-2007, 05:05 PM
marky123

Join Date:
May 2003
Location:
uk,north east lincs
Posts:
3
TPC Rating:
0% (0)
Hi
So....
I have a 77/22 allweather in .22lr,can I convert it to .17HMR merely by installing a .17HMR barrel?
MARK
Reply With Quote
  #9
Old 04-20-2007, 04:13 PM
Johnly

Join Date:
Oct 2002
Posts:
50
TPC Rating:
0% (0)
I found a good deal on a 77/22 22LR All Weather the other day. If I ran a 22 Mag reamer into the barrel and altered the bottom metal for a 22 Magnum magazine I shoulf be good to go. Correct? And yes I'm aware that the 22LR has a nominal 0.222" bore and the 22 Mag is 0.224". Contender shhoters have found that the tighter .222" bore improves that accuracy of the 22 Magnum.

John in Oregon
Reply With Quote
  #10
Old 07-15-2007, 09:47 PM
patience0830
US Army Veteran NRA Member - Click Here To Join! Appleseed Rifleman

Join Date:
Nov 2005
Location:
Not far from the tree
Posts:
8,311
TPC Rating:
100% (53)
groove length

O.M.R.

i think you have the labels reversed for the grooove length. longer groove for the magnum. don't know why they don't just cut 'em all long. would save me opening them up with a dremel and filing down the ejector tit on the trigger guard when I do a rebuild.
Reply With Quote
  #11
Old 08-04-2007, 08:19 PM
Ole' Man River
US Navy Veteran NRA Member - Click Here To Join! GOA Member

Join Date:
Jan 2000
Posts:
4,019
TPC Rating:
93% (24)
Quote:
Originally Posted by patience0830 View Post
O.M.R.

i think you have the labels reversed for the grooove length. longer groove for the magnum. don't know why they don't just cut 'em all long. would save me opening them up with a dremel and filing down the ejector tit on the trigger guard when I do a rebuild.
The bolt on the left is most definitely from a 77/22 (LR) Long Rifle receiver. I just pulled my rifle apart to verify it. The numbers on the bolt and receiver match. Rifles with the 702- prefix in the serial number are LR rifles. Perhaps you might want to check the numbers on your bolts and receivers.

Last edited by Ole' Man River; 08-04-2007 at 10:53 PM.
Reply With Quote
  #12
Old 08-07-2007, 05:36 PM
ChiefDave

Join Date:
Mar 2002
Posts:
4,600
TPC Rating:
100% (2)
Quote:
Originally Posted by Johnly View Post
I found a good deal on a 77/22 22LR All Weather the other day. If I ran a 22 Mag reamer into the barrel and altered the bottom metal for a 22 Magnum magazine I shoulf be good to go. Correct? And yes I'm aware that the 22LR has a nominal 0.222" bore and the 22 Mag is 0.224". Contender shhoters have found that the tighter .222" bore improves that accuracy of the 22 Magnum.

John in Oregon
Chief Says : I think you will find this a bit difficult as the all weather stocks,
1. Have no bottom metal to swapout . 2 The mag release is pinned directly into the stocks magwell.
If you look closely at the Ruger ( zytel ) all weather stock you will see that the trigger guard is molded with the stock.
Reply With Quote
  #13
Old 01-29-2008, 12:14 PM
slowford05

Join Date:
Nov 2007
Posts:
14
TPC Rating:
0% (0)
I have a .22MAG Stainless/wood that I am trying to convert to .22LR

What do I need to do/buy for this conversion?

Thanks!

-dan
Reply With Quote
  #14
Old 03-31-2008, 12:36 AM
MinusB's Avatar
MinusB
Fire FighterEmergency Medical Technician NRA Member - Click Here To Join!

Join Date:
Apr 2005
Location:
Arizona
Posts:
1,473
TPC Rating:
0% (0)
I've done this swap myself, taking a stock .22LR to .17HMR - Ole Man River's info is right on!! This swap is very easy and this post gave me the push to make my desire a reality.

Some notes: in the pictures above showing the groove length on the breech blocks, they are mislabeled. It is actually the Magnum bolt on the left and the Long Rifle bolt on the right. It isn't a big deal really, but can be some extra work depending on the direction you are converting. A magnum to LR conversion would require less work (no bolt grinding) than would a LR to magnum, as evidenced by the shorter grooves that need modifying to work with magnum hardware.

Also, the rifle I modified is a 1984 77/22 LR, and the stock was inletted for the LR-length trigger guard, but hung up on the magnum-length trigger guard. This only took 10 minutes with some chisels to remedy, but is another point to consider. I am not sure if LR stocks are inletted differently than Magnum stocks today, but this could be something to expect on older rifles like mine.

That's all I have to say. Conversion = easy.
Reply With Quote
  #15
Old 05-01-2008, 11:35 AM
Corsica Coatings
US Air Force Veteran Law Enforcement Officer NRA Member - Click Here To Join!

Join Date:
Oct 2007
Location:
Northern Idaho
Posts:
658
TPC Rating:
0% (0)
Can you swap a 10/22 barrel to a 77/22 without a lot of hassle??
