custom br stock question



Log in to see fewer ads
I've been admiring Mr. Hipshot's collection of masterpieces and decided to give it a go. The project starts with a birch ruger target stock. I happened to have a few extra mahogany boards laying around so I'm using them for this attempt. I've mocked up the fore end to finish at 3.25"wide with the bottom running parallel to the barrel. The question is regarding the butt. How do you experienced stock builders determine how much lower from the fore end to make the bottom of the butt. I understand that the two need to be as close to parallel with each other as I can make them. Thanks for some guidance on this.
Reply With Quote
  #2
Old 09-01-2013, 08:38 PM
azguy
NRA Member - Click Here To Join! UotM

Join Date:
Apr 2011
Location:
Tucson, AZ
Posts:
3,585
TPC Rating:
100% (18)
Just me, but on the B&C Anschutz Target Stock it's about .5, and on the one I am making now, for John I am also using .5. That is from the top rail to the top of the comb, which is parallel to the top rail, and centered on the action. But I have measured anywhere from .3125 and up to .6 or so. Now if you are looking for a cheek weld than it is whatever fits you best. Otherwise it doesn't really matter, as long as the comb isn't in the way of getting a good scope / sight picture. Good luck!
Reply With Quote
  #3
Old 09-01-2013, 08:44 PM
Hipshot
Law Enforcement Officer UotM

Join Date:
Jul 2004
Location:
Hernando County, Florida
Posts:
1,177
TPC Rating:
100% (4)
rokehe, I'll share the dimensions that I used. To answer your question directly, the bottom of the buttstock is 3-1/2" below the forearm, i.e., bottom of the stock at the trigger guard/magazine well.

But that's not how I actually locate the line of the bottom of the buttstock. I draw a reference line level with the top of the stock, i.e., the line of the bore, measure down 1/2" to establish the top of the comb, and 5" to establish the bottom of the buttstock. This makes the buttstock 4-1/2" tall. I leave a flat on the bottom of the buttstock that is 1/2" wide to assist in riding the bag.

I have no idea if there any hard and fast rules for these dimensions, but this is what has worked for me. HTH
Reply With Quote
Sponsored Links
Advertisement

  #4
Old 09-01-2013, 09:24 PM
philoshop

Join Date:
Aug 2012
Location:
finger lakes/NY
Posts:
241
TPC Rating:
0% (0)
Good question Rokehe,

I made mine a little too tall, I think, especially considering the uphill shooting angle on my range. The difficulty is that once it's glued in place it's very difficult to recut and still keep parallel to the bore. I don't have a mill with a cross-slide vise to get that done precisely. Still trying to figure out a way to cut it down a bit without screwing everything up. (picture head-scratching)
Not sure if you've followed my build thread in the stocks section. No recent posts because of, well, the head-scratching.
After looking at my build mockup early on, and thinking it 'looked' good aesthetically I went ahead and glued it before really trying to shoot it. Now, it feels a little too tall.
Then I start reading Blacknboostins' thread here about bench tips and techniques and the wealth of information therein. I'm worrying about the spokes on the wheels of my buggy while the F1 cars are going by! LOL
Anyway, what an amazing and fun way to do a 'build' project without getting into the inletting.
Based on my limited experience in this, use screws, tape and whatnot to get it to shoot and feel right as best you can before you commit. I knew that and still got anxious and made the early jump.

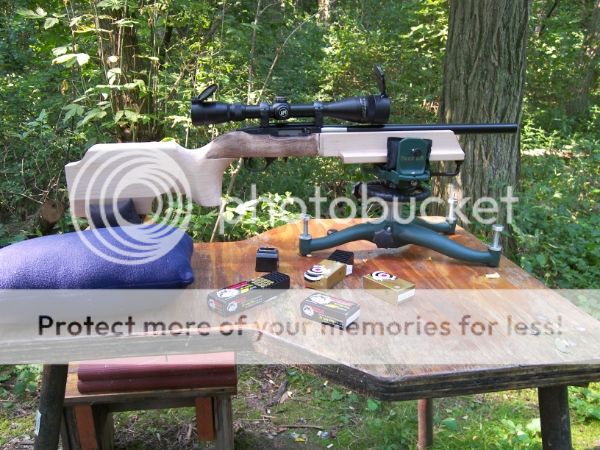

Here's a pic of mine:
