This is a follow up to my previous post about lengthening the stock on my Mossberg KD640KD. This is the first work on a gun stock I have ever done so I may not have used the best process but here is what I did:
I first used Foam and tape to figure out what I wanted to do. You can see a crease in the tape showing how short the stock was to begin with.
![Image]()

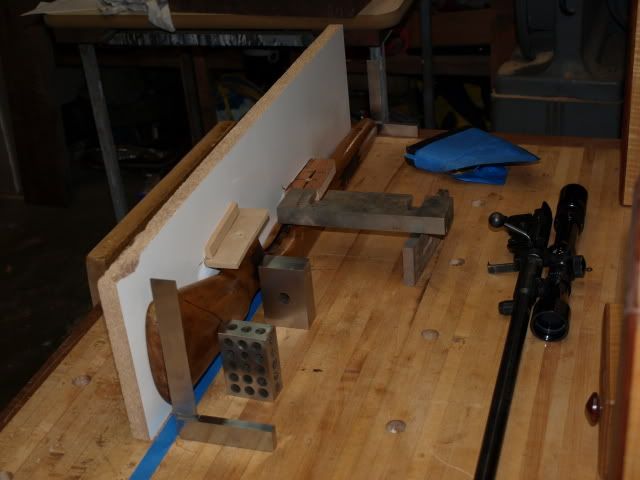

The tricky part was figuring out how to accurately cut the two pieces of the wedge to fit together. I came up with the idea of using a baseboard to support the stock and also be a cutting guide. Here I am aligning the stock so it is flat and straight to the board.
![Image]()
During the set-up I glued and clamped support blocks to the base plate that would support the stock.
![Image]()

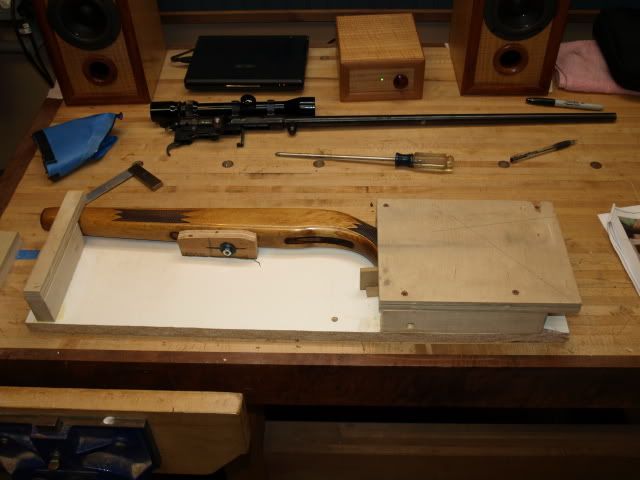

The real key was adding the top cut-plate and front guide to help in precision cutting on the bandsaw.
![Image]()
I cut right through the top plate, base and stock in one pass. This then gave me a perfect template for the walnut wedge.
![Image]()
I cut and checked the fit of the walnut wedge.
![Image]()
I then lightly planed the surfaces of the wedge to be smooth and used a large chisel to pare the stock cuts smooth. I just removed the small ridges and no more.
![Image]()

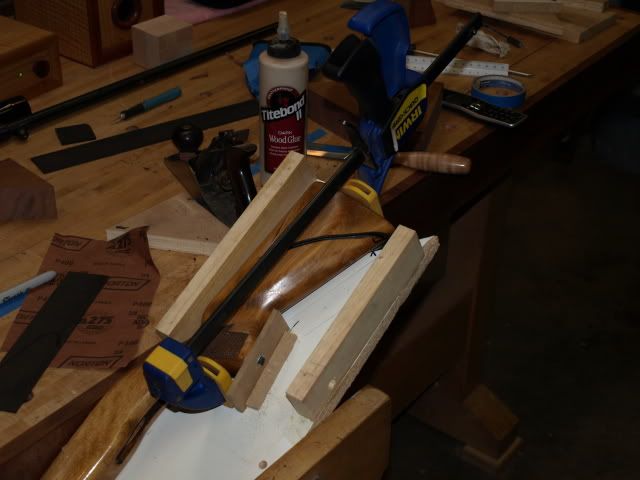

I sliced some 1/8" thick strips of ebony on a table saw, gave them a quick clean-up with the hand plane and carefully trimmed them to the correct intersecting angle. I used the original stock as a caul to glue the strips into place. (it is hard to see but the maple chisel in the picture is what i make for a living)
![Image]()

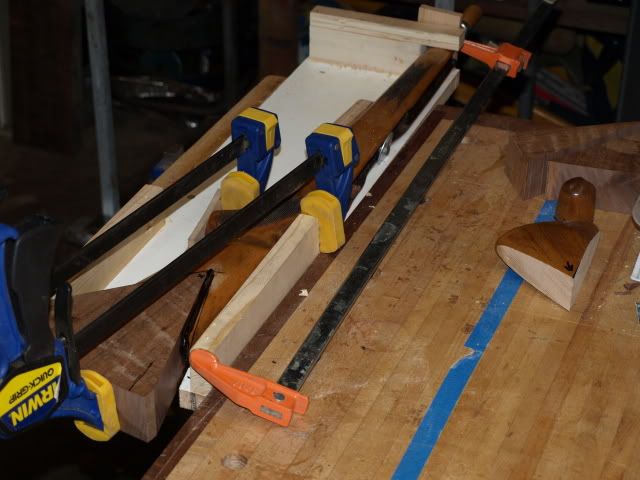

The baseboard became a really easy way to clamp the walnut blocks into place
![Image]()
The excess was trimmed on the band saw and then hand planed to shape. This was the easier side.
![Image]()
The cheek sid was a bit more challenging and required the use of rasps and files to work in the contour of the cheek piece.
![Image]()
I block sanded the new additions to blend into the original stock and applied several hand rubbed coats of a tung oil and varnish thinned with turpentine. Here the finish is in progress. At this point I had not decided what to do with the butt pad so it has been left sharp. I later rounded the edges slightly.
![Image]()
And here is the finished product. I hope to get out on Saturday and fire off a few rounds.
![Image]()
